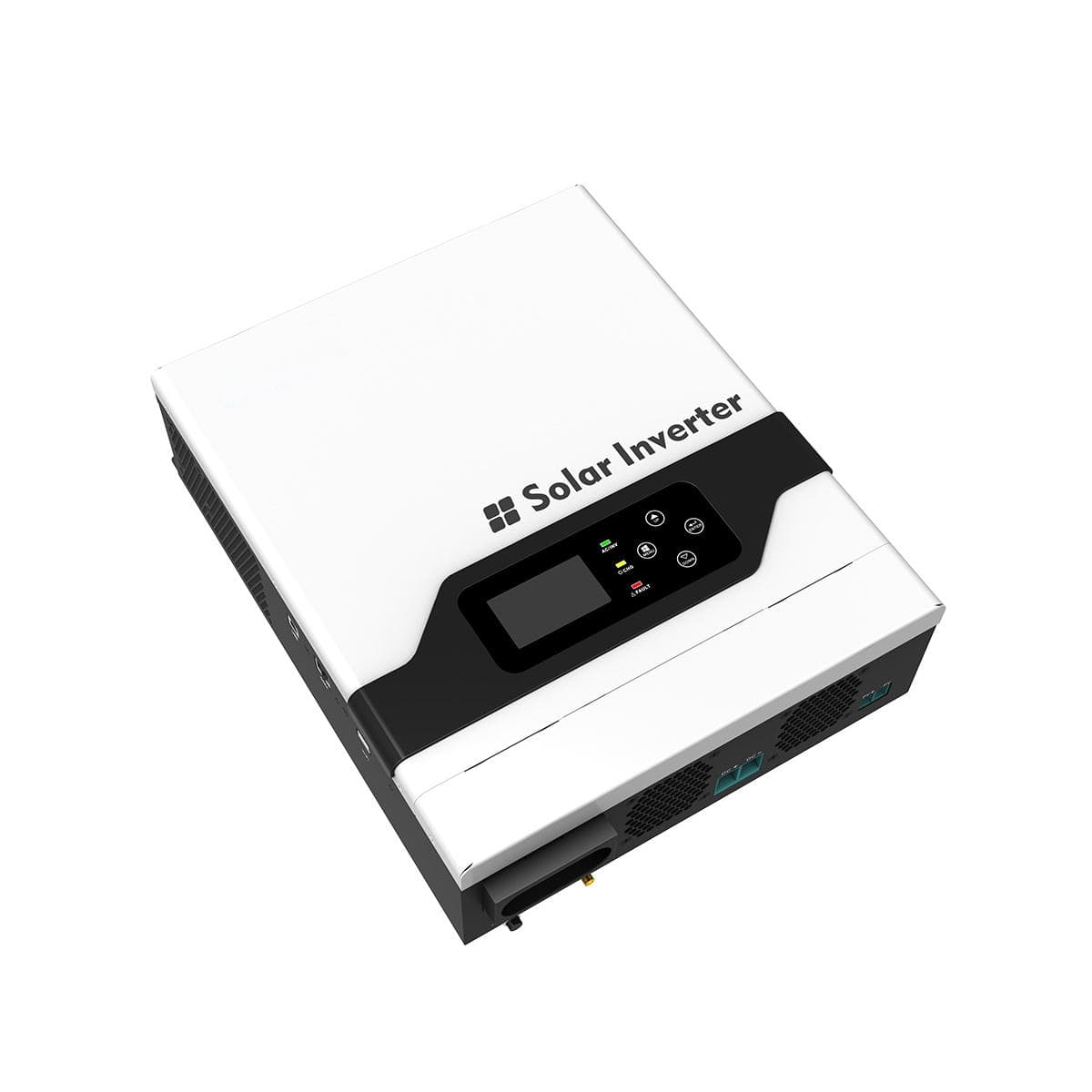

PV1800 VPM II Series (1~5.5KW)
ModelPV18-1012 VPM II, PV18-1512 VPM II, PV18-2224 VPM II, PV18-3224 VPM II, PV18-5548 VPM II
Off Grid Solar Inverter — High Frequency Solar Inverter (Single Phase, MPPT 45-80A) (1000W / 1500W / 2200W / 3200W / 5500W)
At a glance
- Rated Power
- 1000W / 1500W / 2200W / 3200W / 5500W
- Nominal Battery Voltage
- 12VDC / 24VDC / 48VDC
Series ranges may cover several models. Confirm your required configuration with our team.
0 / 3 selected in this product family. Your shortlist stays in this tab.
Ask our team for current pricing and availability for this model.
Applications
Residential / Off-Grid Solar
Key features
- Built-in 45-80A MPPT solar charger, supporting up to 250V PV open-circuit voltage (for 5548 model).
- PV lithium battery activation function for enhanced system compatibility.
- Smart LCD setup for key operating parameters and hybrid energy supply (Solar / Utility / Battery).
- Wi-Fi remote monitoring for real-time management and generator compatibility for backup power.
- Supports parallel operation of up to 3 units for scalable system capacity (for 5548 model).
- Full protection against overload, short circuit, and deep discharge with cold start capability.
