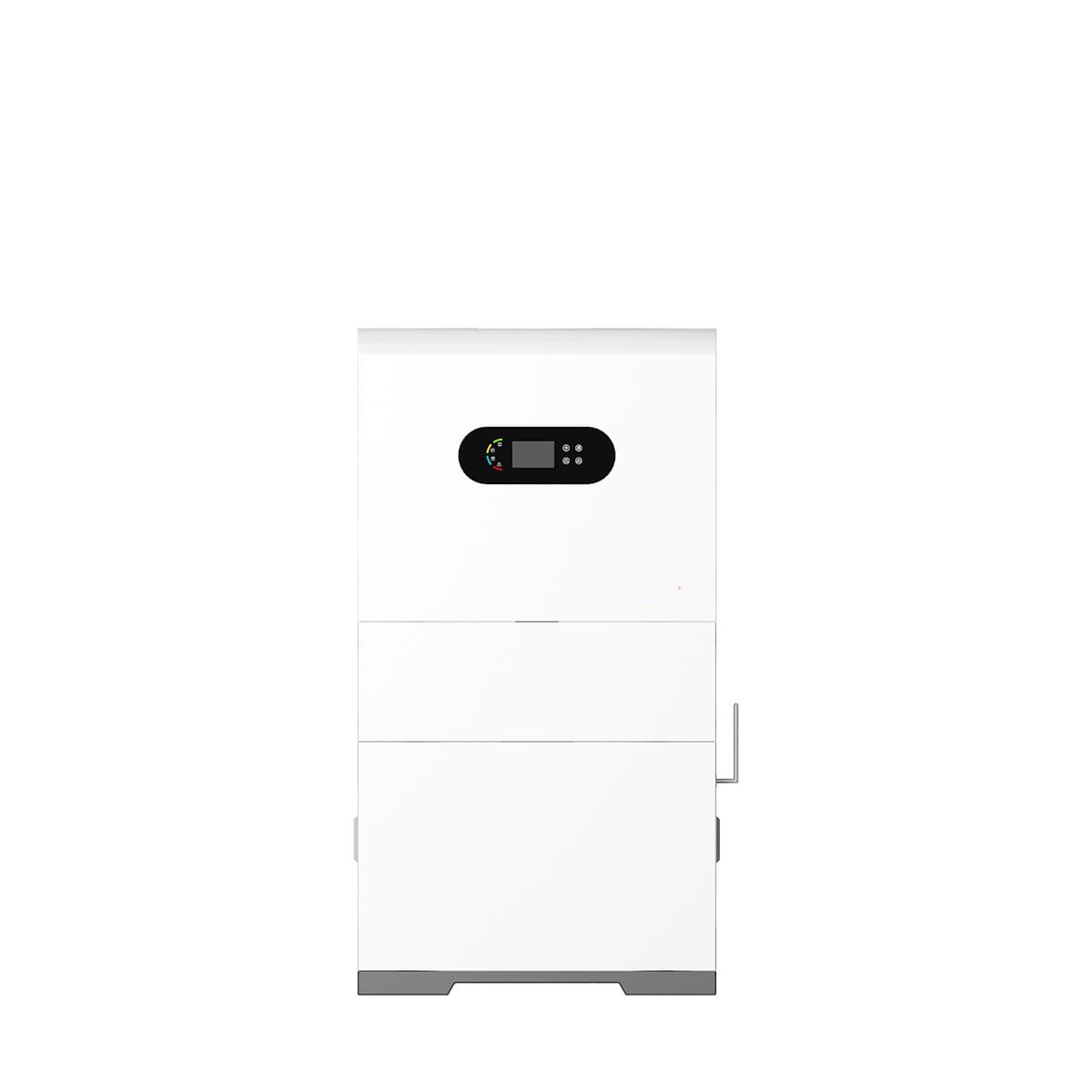

All-in-One ESS

HBP1100 PRO Series 3.6KW-6KW / 5120Wh-15360Wh

ModelHBP11-3648 PRO, HBP11-4048 PRO, HBP11-4648 PRO, HBP11-5048 PRO, HBP11-6048 PRO

All-in-One ESS — IP66 Stackable Hybrid Solar ESS | Single Phase 230VAC | Dual MPPT 500V | Grid-Tie & Backup

0 / 3 selected in this product family. Your shortlist stays in this tab.

Ask our team for current pricing and availability for this model.

Applications

Residential / Commercial Hybrid Solar

Manufacturer-listed enclosure rating: IP66. Confirm the supplied model’s installation and environmental instructions for the intended site; the rating alone does not establish suitability for every outdoor condition.
Dual MPPT Trackers (500V VOC): Up to 7000W DC solar input with 99.8% MPPT efficiency across multi-directional roofs.
Modular Scalable Battery Stacking: Tool-free vertical stacking from 1 to 3 battery modules (5.12kWh, 10.24kWh, 15.36kWh).
Multi-Mode Operation & TOU Scheduling: Supports Self-Consumption, Load Priority, Grid Selling, and 6 programmable Time-of-Use peak-shaving periods.
Generator integration review: the manufacturer reference lists support for generator connection. Confirm the exact model, AC input and documented control requirements; connection support alone does not establish automatic startup or interruption-free changeover.
Smart Cloud Management: Integrated WiFi communication, mobile app monitoring, and advanced cell-level BMS diagnostics.

Warranty periods listed here are catalogue references. Confirm the applicable warranty terms for your exact model and purchase with Toyama.

Models	HBP11-3648 PRO, HBP11-4048 PRO, HBP11-4648 PRO, HBP11-5048 PRO, HBP11-6048 PRO
Nominal AC Output Power	3600W / 4000W / 4600W / 5000W / 6000W
Max Recommended DC Power	4000W / 5000W / 5500W / 6000W / 7000W
MPPT Trackers / Max VOC	2 MPPT (1 String/MPPT); Max VOC: 500VDC (MPPT: 120-500VDC) / / / /
Grid Voltage & Frequency	Single Phase: 220/230/240VAC (180-280VAC); 50/60Hz / / / /
Peak Backup Power (10s)	5400W / 6000W / 6900W / 7500W / 9000W
Inverter Max / Euro Efficiency	Max: 97.1%; Euro: 96.5%; MPPT: 99.8% / / / /
Modular Battery Capacity	51.2V 100Ah Modular (1-3 Packs): 5120Wh / 10240Wh / 15360Wh / / / /
Max Charge Power / Current	3600W / 75A / 4000W / 85A / 4600W / 95A / 5000W / 100A / 6000W / 125A
Ingress Rating & Dimensions	IP66; Width 594 mm x Depth 220 mm x Height 1154/1559/1964 mm / / / /
Module Weight	Inverter: 42 kg; Battery Module: 52 kg/unit / / / /
Standard Warranty	Inverter: 5 Years; Lithium Battery: 5 Years; CE-EMC / / / /
