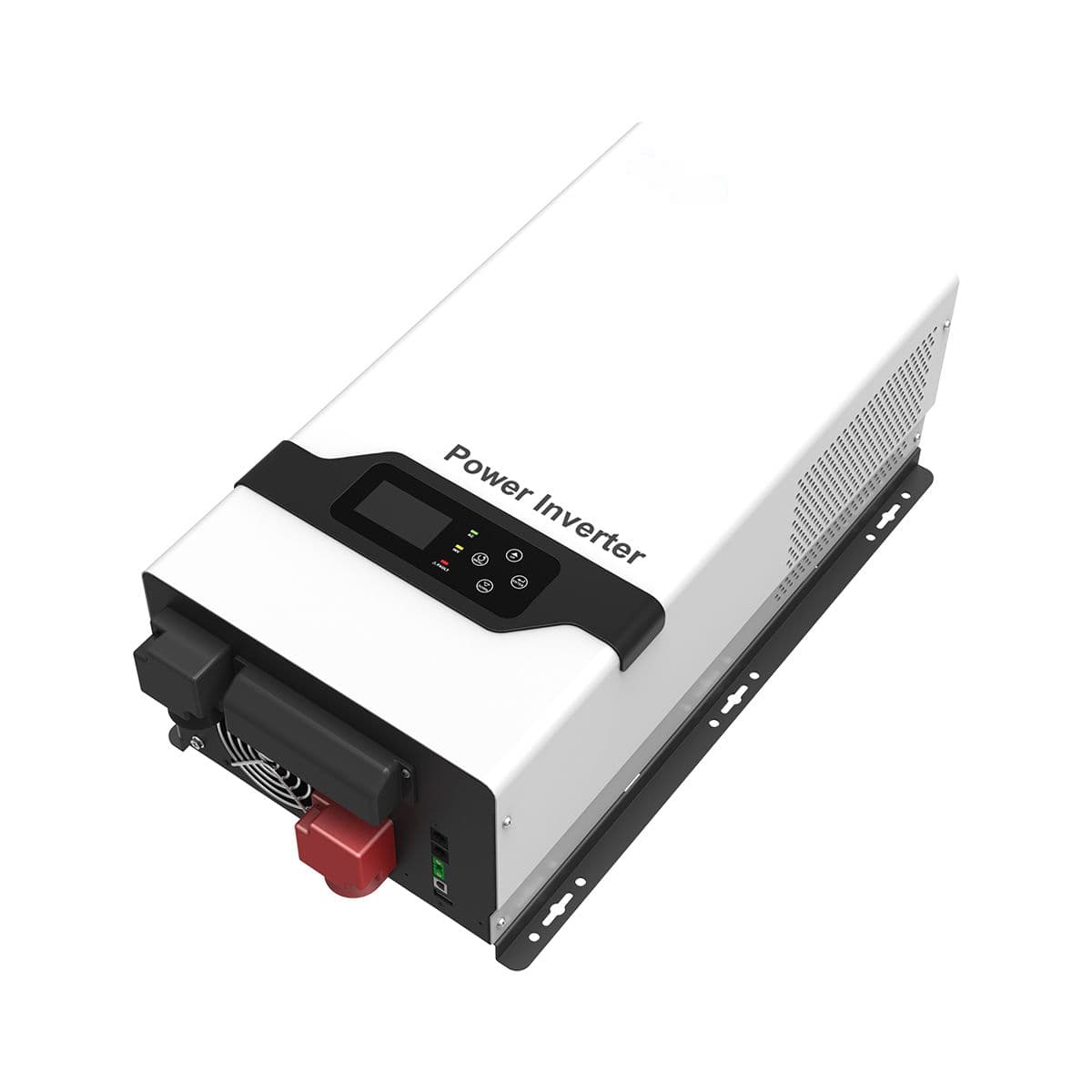

EP3000 LV Series (1~6KW)
ModelEP30-1012/1024, 1512/1524, 2012/2024, 3024/3048, 4024/4048, 5048, 6048 LV
Off Grid Power Inverter — Low Frequency Power Inverter/Charger (Single Phase, 120VAC, CAN BMS) (1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W)
At a glance
- Rated Output Power
- 1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W
- Nominal Battery Voltage
- 12VDC / 24VDC / 48VDC
Series ranges may cover several models. Confirm your required configuration with our team.
0 / 3 selected in this product family. Your shortlist stays in this tab.
Ask our team for current pricing and availability for this model.
Applications
Off-Grid / General Backup Inverters
Key features
- Low-frequency transformer design with up to 3x surge capacity for motor and high-inductive loads.
- Multi-Function Display (MFD) allows easy customization of output voltage, frequency, and input range.
- Smart 3-stage charger compatible with lead-acid and lithium batteries with adjustable charge parameters.
- Flexible utility/battery priority configuration and power-saving mode for light-load efficiency.
- Integrated CAN communication port for lithium battery BMS and optional WiFi remote monitoring.
