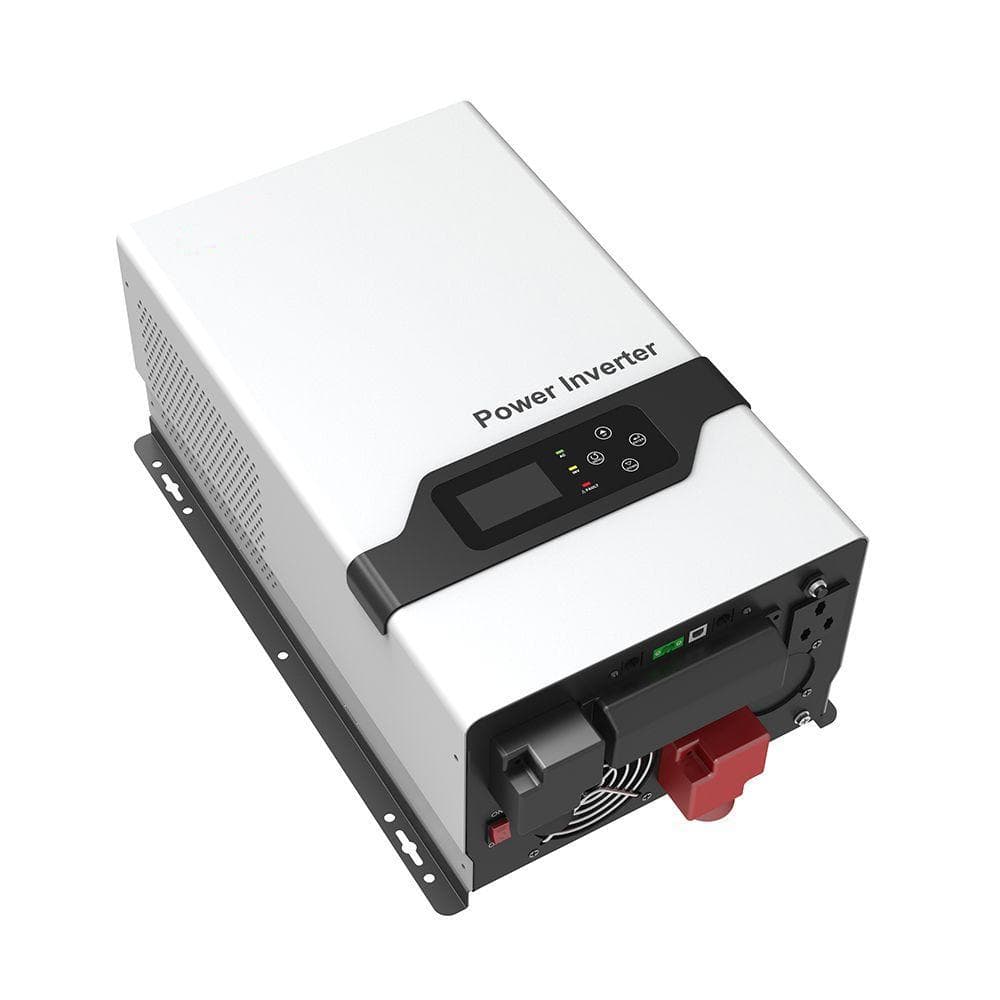

EP3000 PLUS Series (1~6kW) product photo, view 1
Image 1 of 3
Swipe or use arrow keys
Off Grid Power Inverter

EP3000 PLUS Series (1~6kW)

ModelEP30-1012/1024, EP30-1512/1524, EP30-2012/2024, EP30-3024/3048, EP30-4024/4048, EP30-5048, EP30-6048 PLUS

Off Grid Power Inverter — Low Frequency Power Inverter/Charger (Single Phase, WiFi & CAN BMS) (1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W)

At a glance

Rated Power
1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W
Nominal Battery Voltage
12VDC / 24VDC / 48VDC

Series ranges may cover several models. Confirm your required configuration with our team.

Call about this productWhatsApp usSee full specifications
View comparison shortlist

0 / 3 selected in this product family. Your shortlist stays in this tab.

Ask our team for current pricing and availability for this model.

Applications

Off-Grid / General Backup Inverters

Key features

  • Low-frequency copper transformer with up to 3x surge capability for heavy inductive loads.
  • Adjustable AC output voltage (220V/230V/240V) and selectable utility/battery priority modes.
  • Smart CAN communication port compatible with intelligent lithium battery BMS systems.
  • Programmable low-voltage battery cutoff levels to protect battery lifespan.
  • Built-in overload, output short-circuit, and high-temperature protection.

Specifications 7 details

ModelsEP30-1012/1024, EP30-1512/1524, EP30-2012/2024, EP30-3024/3048, EP30-4024/4048, EP30-5048, EP30-6048 PLUS
Rated Power1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W
Surge Rating3000VA / 4500VA / 6000VA / 9000VA / 12000VA / 15000VA / 18000VA
Nominal Battery Voltage12VDC / 24VDC / 48VDC
Nominal Output Voltage220V / 230V / 240VAC ± 10% (RMS)
Inverter Efficiency (Peak)>85% (Inverter Mode), >95% (Line Mode)
Max. AC Charge Current20A / 25A / 30A / 35A / 40A / 45A / 60A
