Power UPS

Line Interactive UPS EW2110 (650-2000VA)

ModelEW2110-600, EW2110-1200, EW2110-2000

Power UPS

At a glance

Series ranges may cover several models. Confirm your required configuration with our team.

0 / 3 selected in this product family. Your shortlist stays in this tab.

Ask our team for current pricing and availability for this model.

Backup Power / Critical Power (UPS)

Warranty periods listed here are catalogue references. Confirm the applicable warranty terms for your exact model and purchase with Toyama.

Models	EW2110-600, EW2110-1200, EW2110-2000
RatedPower	650VA/390W / 1200VA/720W / 2000VA/1200W
Input Voltage	110V/120 VAC or 220/230/240 VAC
Input Voltage range	85-145VAC/145-290VAC / 85-145VAC/175-275VAC
Input Frequency	45~65 Hz

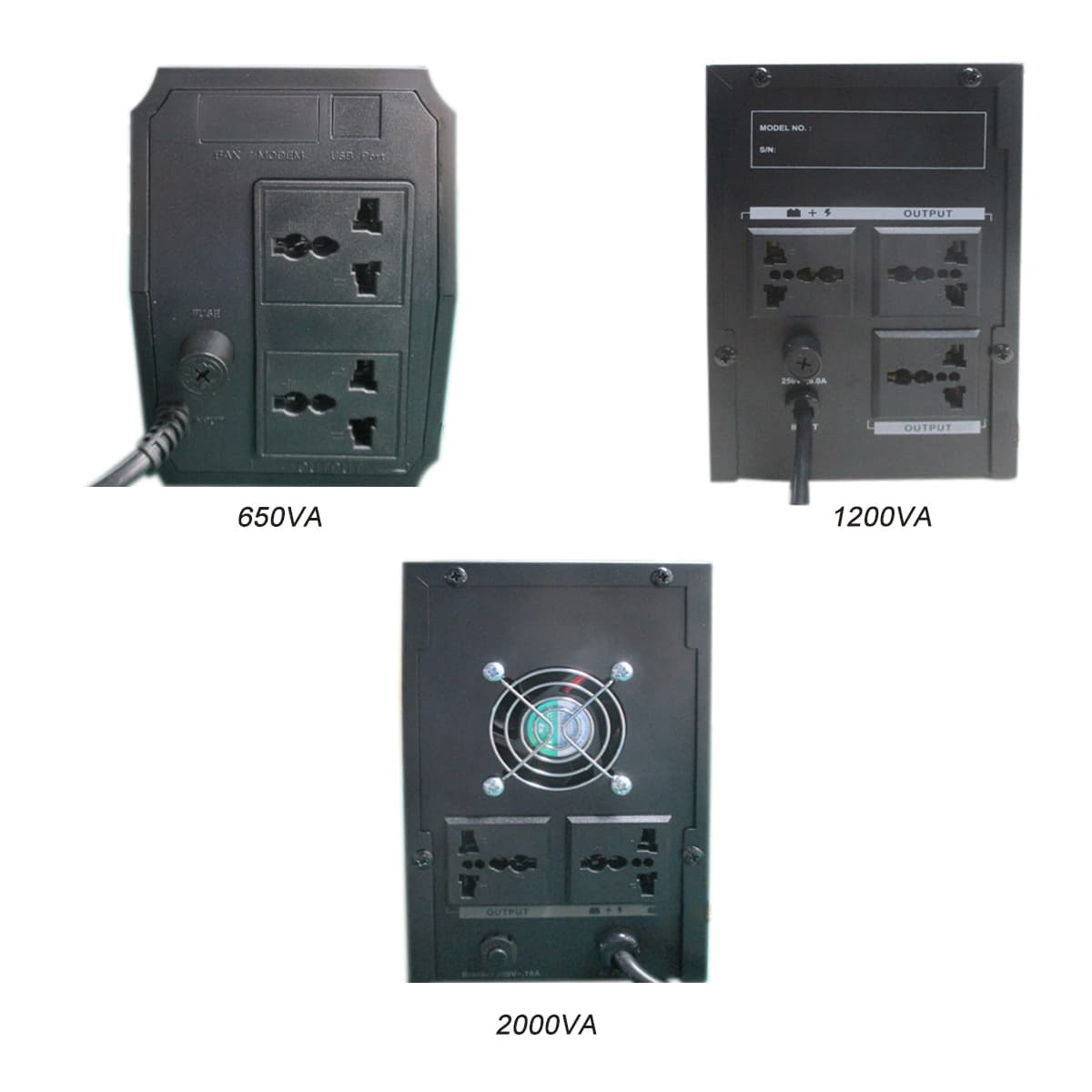

AC Output Port	2 / 3 / 2
Output Voltage	110/120 VAC or 220/230/240 VAC
Output Voltage range	102-132VAC/200-255VAC / 102-132VAC/200-240VAC
Output frequency	60±0.5 Hz or 50±0.5 Hz (Auto sensing)
Output Wave form	PWM (Batt. mode)
Transfer time	Typical 2-6ms,10ms max
QTY. & capacity of battery	12V/7ah1pcs / 12V/7ah2pcs / 12V/9ah*2pcs
Charge time	4-6 hours recover to 90% capacity
Full protection	Low voltage & overload & short circuit protection
Machine Dimension(WHD)(mm)	28495140 / 345146162 / 345122192
N.W(kg)	3.9 / 7 / 11
G.W(kg)	/ / / / /
Standard Warranty	1years
Environment of performance	Temperature 0°C~ 40°C, Humidity 20%~90%
Noise level	Less than 40dB
