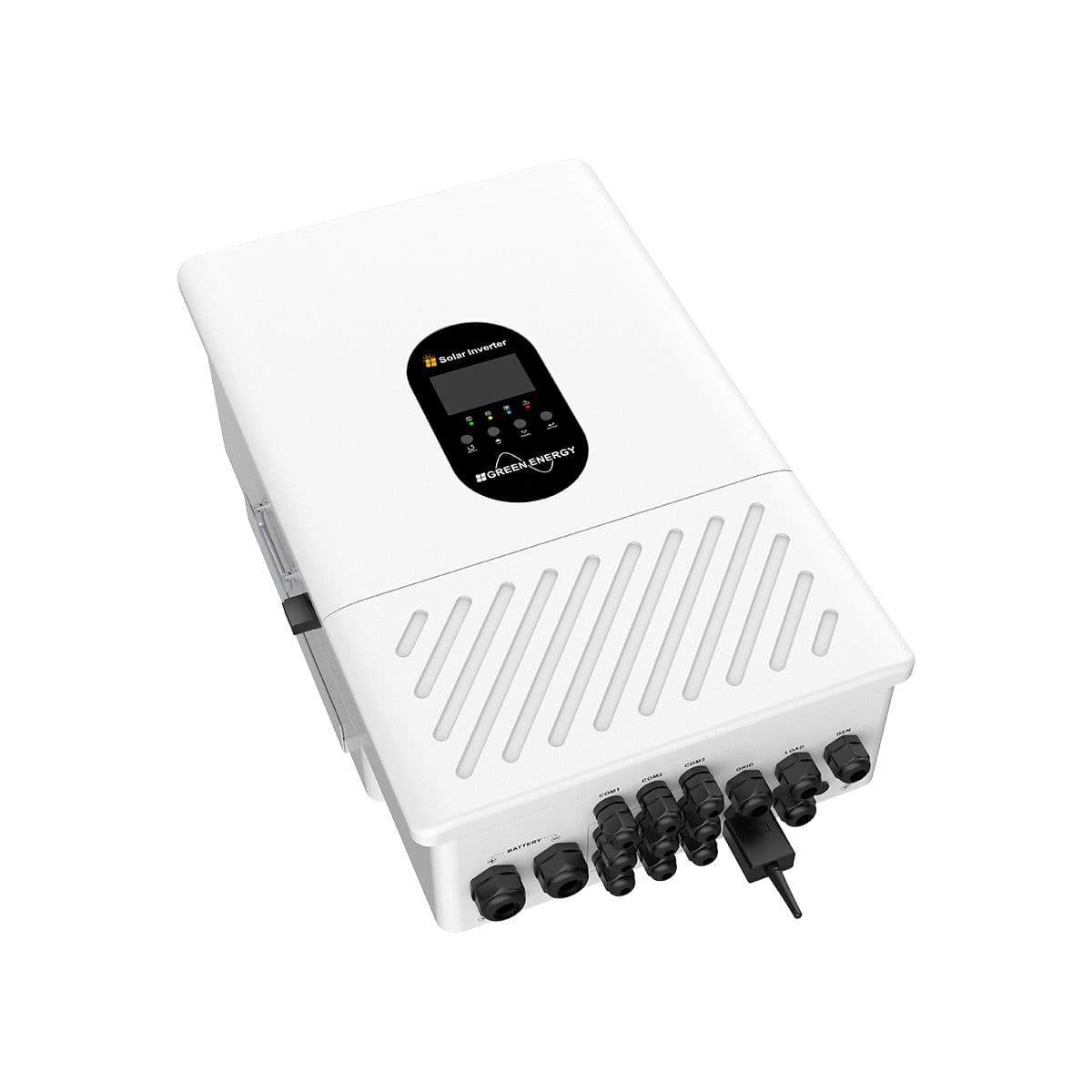

PH1100 US-G2 Series (13~16KW)
ModelPH11-13KL2/14.2KL2/15KL2/16KL2-US-G2
On/Off Grid Hybrid Solar Inverter — Split-Phase Hybrid Solar Inverter (Split Phase, 120V/240V, IP66, 320A)
At a glance
- Nominal Battery Voltage
- 48V
Series ranges may cover several models. Confirm your required configuration with our team.
0 / 3 selected in this product family. Your shortlist stays in this tab.
Ask our team for current pricing and availability for this model.
Applications
Residential / Commercial Hybrid Solar
Key features
- Split-phase pure sine wave AC output (120V/240V) delivering up to 16kW continuous power.
- Heavy-duty AC passthrough current up to 150A (grid to load) to handle whole-home loads.
- High battery charge/discharge rate up to 320A with continuous battery power up to 16000W.
- 3 MPPT trackers with 6 string inputs (2/2/2) supporting up to 32,000W max DC solar input.
- Scalable parallel capacity up to 10 units with touch screen monitoring and IP66 protection.
