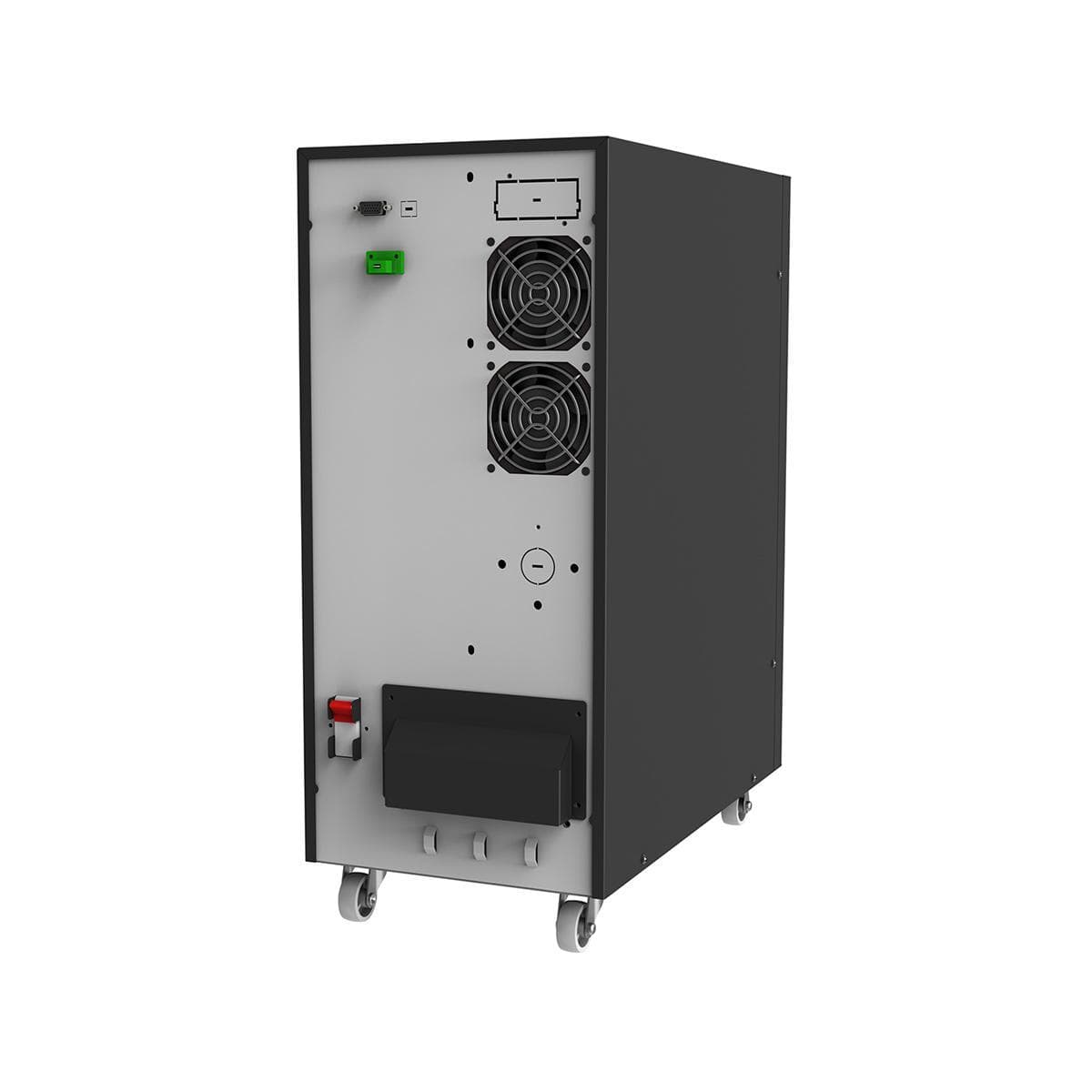

EH5500 Series (6-10KVA)
ModelEH5500 H6K/H6KS, EH5500 H10K/H10KS
Online UPS — High Frequency Single Phase Online UPS
At a glance
- Rated Capacity
- 6KVA/6KW / 10KVA/10KW
- Output voltage
- 208/220/230/240VAC
Series ranges may cover several models. Confirm your required configuration with our team.
0 / 3 selected in this product family. Your shortlist stays in this tab.
Ask our team for current pricing and availability for this model.
Applications
Backup Power / Critical Power (UPS)
Key features
- Double-conversion online design with zero output transfer time.
- DSP digital control for stable, reliable performance.
- Active power factor correction (PFC) keeps input power factor at 1.
- Ultra-wide input voltage range — accepts voltages as low as 110V without switching to battery power.
- LCD + LED real-time display with self-diagnosis for hidden faults.
- Cold-start capability from battery without grid input.
- Input frequency range of 40-70Hz, compatible with fuel generators.
- Comprehensive protection: input over/under-voltage, output overload, short-circuit, temperature and battery low-voltage.
- Selectable output power factor up to 1.0 with efficiency up to 95%.
- Neutral/live line detection avoids reverse-connection faults.
- Automatic recovery and reconnection when utility power returns.
- Standard RS232 communication port for multifunction monitoring.
- Full-load runtime of 3-5 minutes on battery.
