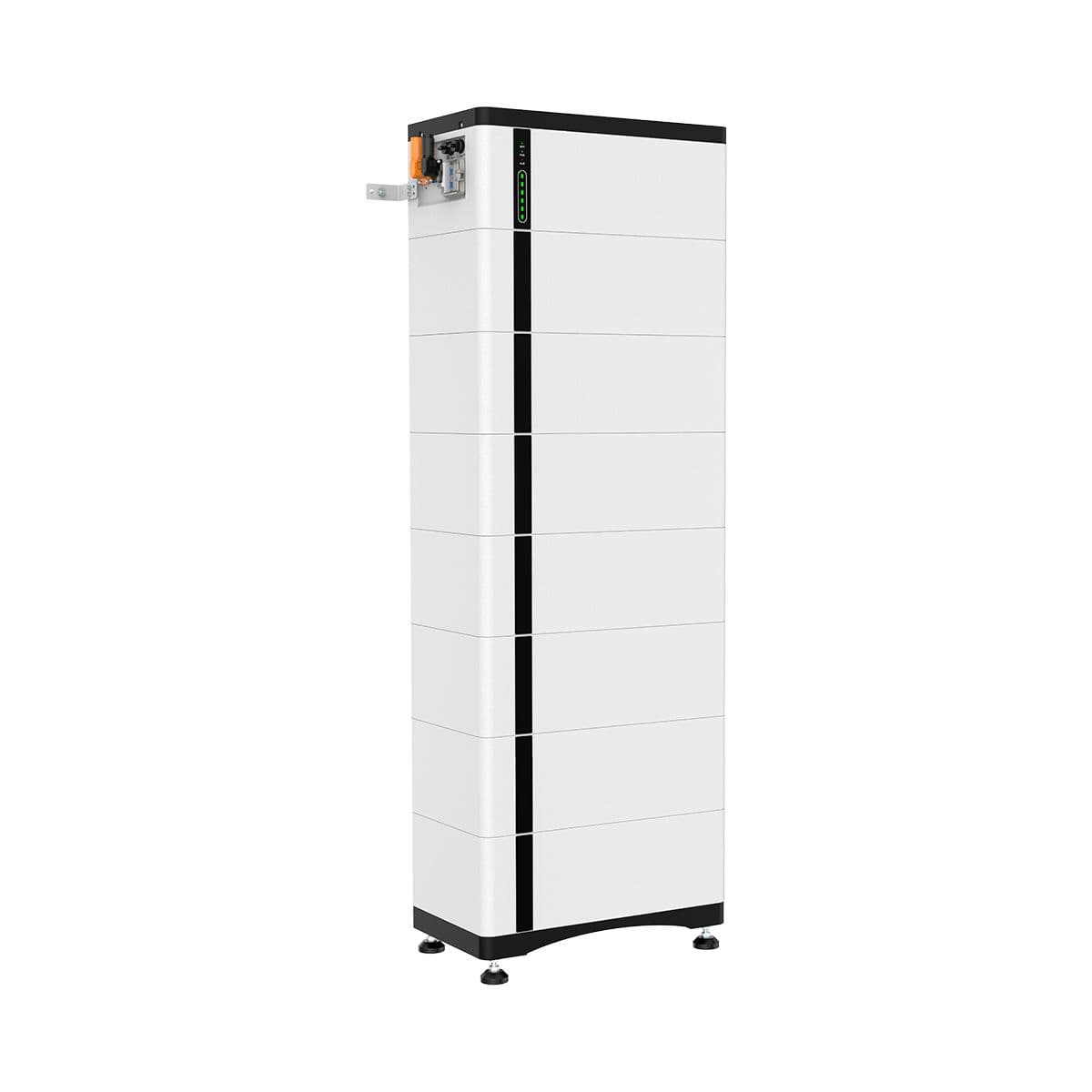

Low Voltage Battery

LP3000 Series 5.12~40.96kWh

ModelLP30-48100 (base module); stacked as LP30-5.1 to LP30-40.8 (1-8 modules)

Low Voltage Battery — High-Power Plug-and-Play Low Voltage System | Stackable Design & Massive 307kWh Scaling

At a glance

Series ranges may cover several models. Confirm your required configuration with our team.

0 / 3 selected in this product family. Your shortlist stays in this tab.

Ask our team for current pricing and availability for this model.

Residential / Off-Grid SolarResidential / Commercial Hybrid Solar

Tool-Free Stacking Deployment: Modular plug-and-play interconnection removes internal link wires, allowing rapid expansion.
Massive Parallel Capacity: Integrates up to 8 stacked modules per cluster, scaling up to 60 units (307.2kWh) in parallel.
High-Current Surge Output: Delivers a reliable 10kW continuous power feed, with a 12kW peak surge capacity for up to 30 seconds.
Independent Intelligent BMS: Features smart module balancing alongside integrated Wi-Fi for remote firmware updates.
Cobalt-Free LFP Chemistry: Delivers an 8000+ cycle service lifespan, backed by a 10-year factory warranty.

Warranty periods listed here are catalogue references. Confirm the applicable warranty terms for your exact model and purchase with Toyama.

Nominal Voltage / Range	51.2V DC / 44.8V to 56.8V
Base Module Used	LP30-48100 (5.12kWh capacity per module)
System Formations Available	LP30-5.1 up to LP30-40.8 (1 to 8 Modules stacked)
Continuous Power Rating	5kW (for 1 module stack) / 10kW continuous (for 2 to 8 module stacks)
Max Charge / Discharge Current	Discharge: Up to 200A continuous / Charge: Scale up to 200A
IP Enclosure / Placement	IP65 Weatherproof / Indoor or outdoor installation (avoid direct sunlight)
Telemetry Interface Ports	CAN / RS485 / BLE / Wi-Fi
Compliance Certifications	CE / IEC62619 / UL1973 / UL9540A / UN38.3
Standard Warranty	10 Years
